Eternal Lighting El Mount XL | Top of Tripod Lighting Mount

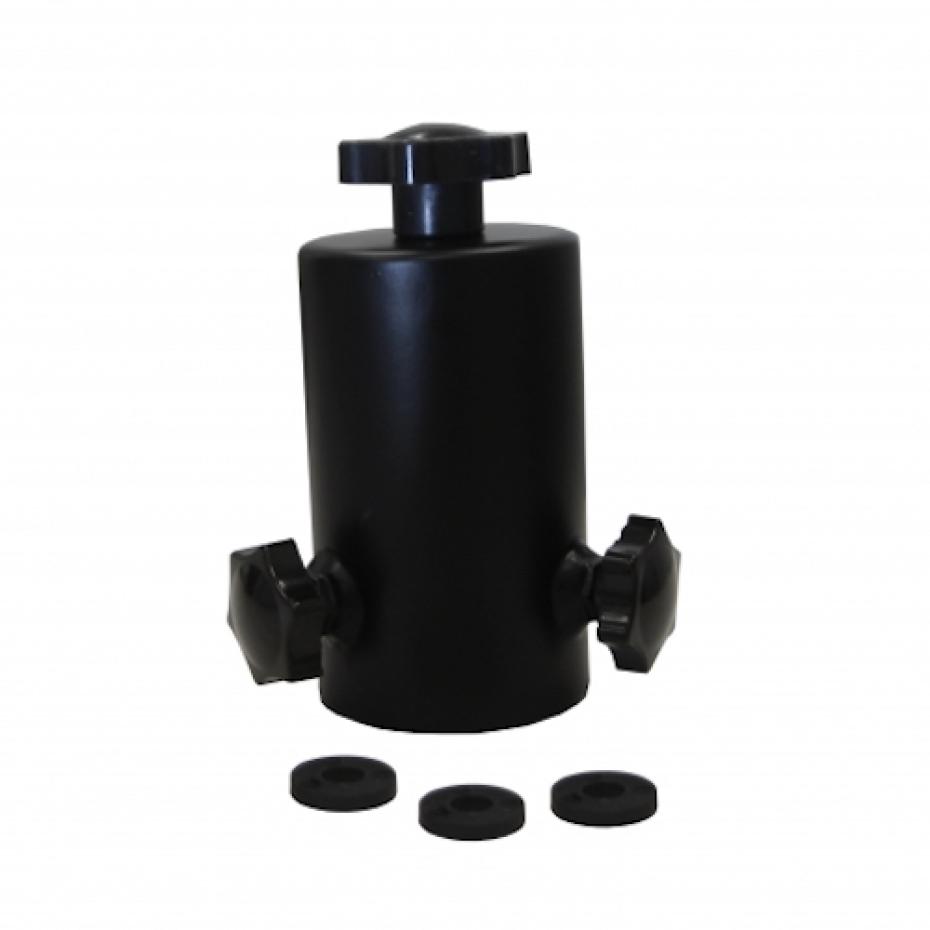

Eternal Lighting El mount XL  (Eternal Lighting ELmount Xl)

The EL Mount™ XL is like our original however larger design for
use with larger mounting poles such as drape Pipe or Sch 40 Pipe with weighted
base and pole for mounting a light fixture or other lighting related deviceused to
mount items such as the EchoMATE, CUBEecho MK2, Small compact Moving heads
such as StellarSpotFX, LED Gobo Projector Ultra120 DMX or any other light. The double
Set screws on the EL Mount XL allows to secure to pole to hold secure from rotating.

The EL Mount™ XL was designed for use with tripod or weighted base and pole for
mounting a light fixture or other lighting related device such as EchoMATE™ for
elevated wireless DMX transmission of the signal strength.

Features & Technical Specifications:

Easily Mount Lighting fixtures to the top larger size poles or weighted pipe and base
Weight: 0.75 lb (3/4 lb)
Fits Pipe Diameter 1.80" - 2.10"
Always use safe mounting pratice with weight mount to base width and weight ratio
Maximum mounted light/fixture weight 32 lbs
Steel construction powder coated black coating
Knob Threads M8x1.25

Dimension:
Overall Lenth 4.75"
Overall Width 3"
Pipe Outer Diameter:  2.39"
Pipe Inner Diameter: 2.10"

What is included:

(1) EL Mount pipe device with threaded top and threaded side for set screw knob
(1) Threaded Knob for top Screw .50" Length Threads
(2) Threaded knob for side set screw .75" Length Threads
(3) Rubber Washers for set screw and top knob
