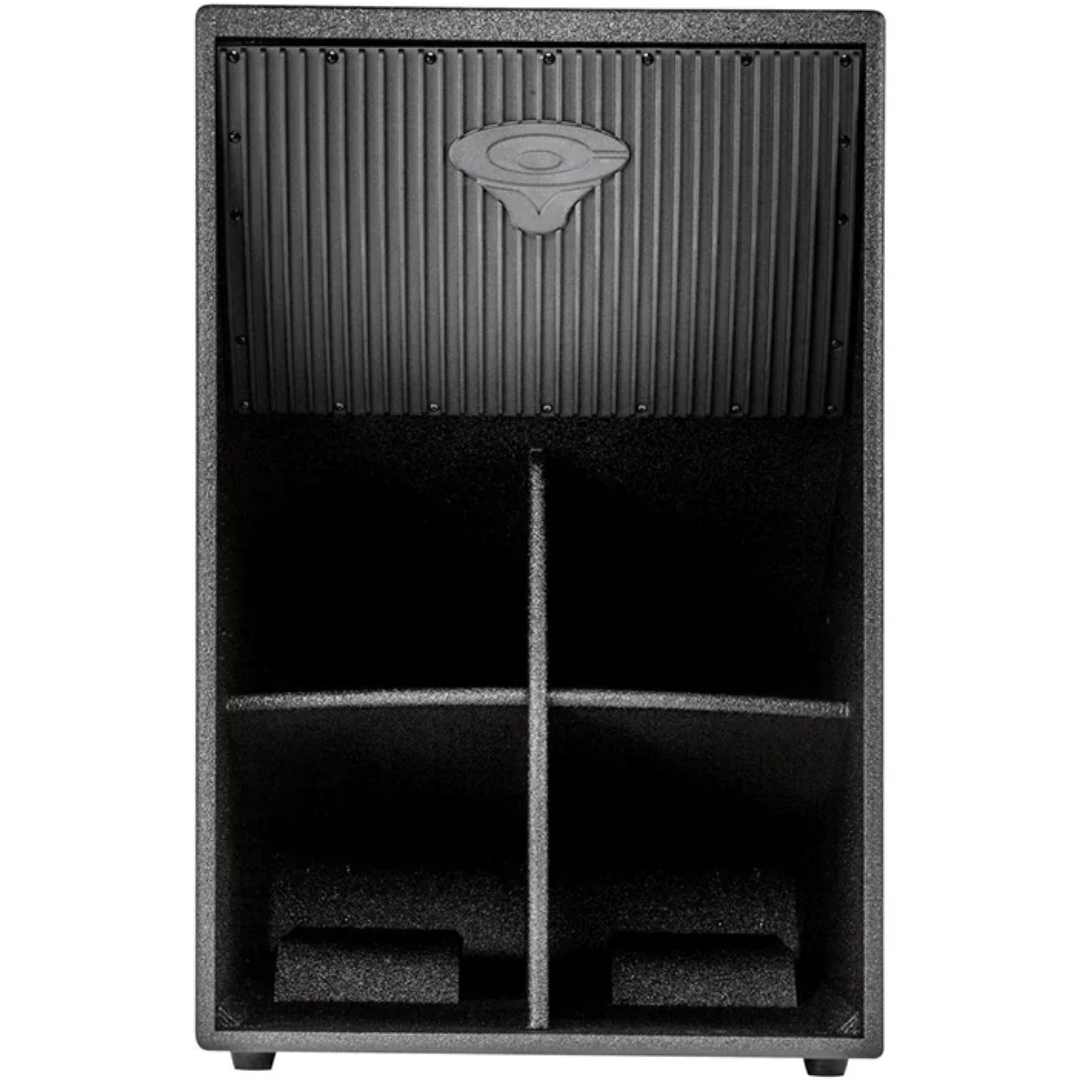

Cerwin Vega EL-36DP | 18in Powered Folded Horn Subwoofer | 2000W Class-D Amp with TourShield Finish

Cerwin-Vega EL-36DP  (Cerwin Vega EL36DP)

Powered Horn-Loaded Subwoofer

The Cerwin Vega EL-36DP is a high-output, 18-inch powered folded horn subwoofer built to deliver seismic bass performance for live sound professionals. Designed for maximum efficiency and deep frequency extension, this Earthquake™ Series sub is powered by a built-in 2000W Class-D amplifier, producing up to 136 dB of powerful low-end energy. Ideal for concert stages, touring setups, and outdoor events, the EL-36DP combines punchy performance with road-ready durability.

Cerwin Vega EL-36DP Competitive Differences

• 2000W Class-D amplifier for deep, tight bass
• Horn-loaded design delivers 136 dB SPL
• TourShield™ coating protects cabinet from wear and tear
• Selectable crossover with XLR inputs/outputs for seamless integration

Cerwin Vega EL-36DP Description

The Cerwin Vega EL-36DP is engineered to redefine what's possible with portable low-end reinforcement. Its folded horn design maximizes projection while minimizing physical footprint, giving it superior throw and impact over traditional front-loaded subs. The integrated Class-D amplifier produces up to 2000 watts of peak power, driving the massive 18-inch woofer with accuracy and efficiency. Thanks to its extended low-frequency response down to 37 Hz, the EL-36DP brings chest-thumping bass to any event. Whether you're filling a concert hall or energizing an outdoor crowd, this subwoofer delivers deep, controlled lows with surgical precision. The rugged enclosure is wrapped in Cerwin Vega’s signature TourShield™ coating, offering resistance against scuffs, scratches, and the rigors of transport. XLR and combo inputs make integration easy, while a selectable crossover lets you fine-tune system performance based on your setup. With Cerwin Vega’s decades-long legacy of live sound dominance, the EL-36DP is the ideal choice for professionals who demand clarity, output, and build quality in one package.

Model Features

• 18” low-frequency driver in a folded horn design
• 2000W peak Class-D amplifier
• Built-in crossover for tuning and flexibility
• Combo 1/4" TRS/XLR inputs and XLR outputs
• TourShield™ protective coating for rugged durability
• Engineered for high-output touring and event use

Model Specifications

• Power Output: 2000W Peak
• Frequency Response (±3 dB): 44Hz–336Hz
• Frequency Range (+3/–10 dB): 37Hz–673Hz
• Max SPL @ 1m: 136 dB
• LF Driver: 18” Woofer
• Connectors: Combo (1/4” TRS/XLR) inputs, XLR outputs
• Enclosure: 18mm plywood with TourShield™ finish
• Dimensions: 26 x 38 x 39 in (66 x 96.5 x 99 cm)
• Net Weight: 172 lb (78 kg)
• Gross Weight: 188.4 lb (85.5 kg)

What’s In The Box

• Cerwin Vega EL-36DP Subwoofer
• Power Cord
• Quick Start Guide
